B12E2:11 [BCM]
id990210471900
| System malfunction location |
Rear door lock-link switch (LH)/(RH) unlock circuit malfunction |
|---|---|
|
Detection condition
|
• The body control module (BCM) detects a short to ground in the rear door lock-link switch (LH)/(RH) unlock circuit.
Precondition
• The rear door lock-link switch not unlocked.
|
|
Fail-safe
|
• Not applicable
|
|
Possible cause
|
1. Rear door lock-link switch (LH) malfunction (Refer to [REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION] in workshop manual.)
2. Rear door lock-link switch (RH) malfunction (Refer to [REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION] in workshop manual.)
3. Malfunction in wiring harness (including connector/terminal) between rear door latch and lock actuator (LH) and body control module (BCM) (See CIRCUIT INSPECTION.) (See CONNECTOR INSPECTION.)
4. Malfunction in wiring harness (including connector/terminal) between rear door latch and lock actuator (RH) and body control module (BCM) (See CIRCUIT INSPECTION.) (See CONNECTOR INSPECTION.)
5. Body control module (BCM) malfunction (Refer to [BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION] in workshop manual.)
|
|
Repeatability verification procedure
|
1. Clear the DTC recorded in the memory. (See CLEARING DTC.)
2. Turn the rear door lock-link switch (driver's side) lock.
|
 |
|
|

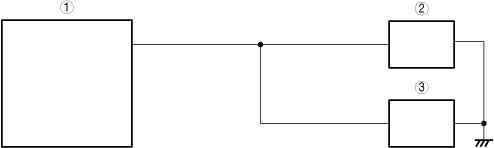

1
|
Body control module (BCM)
|
|
2
|
Rear door latch and lock actuator (LH)
|
|
3
|
Rear door latch and lock actuator (RH)
|
