DTC Lookup

B1277 DTC

License Plate Light/Parking Light/Side Marker Light/Taillight

Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector

Possible Causes

  • 1. Malfunction in wiring harness (including connector/terminal) between body ground and trunk lid light/liftgate light (LH) (See CIRCUIT

Back-up Light (4SD)

BACK-UP LIGHT_B127714

Connector Views

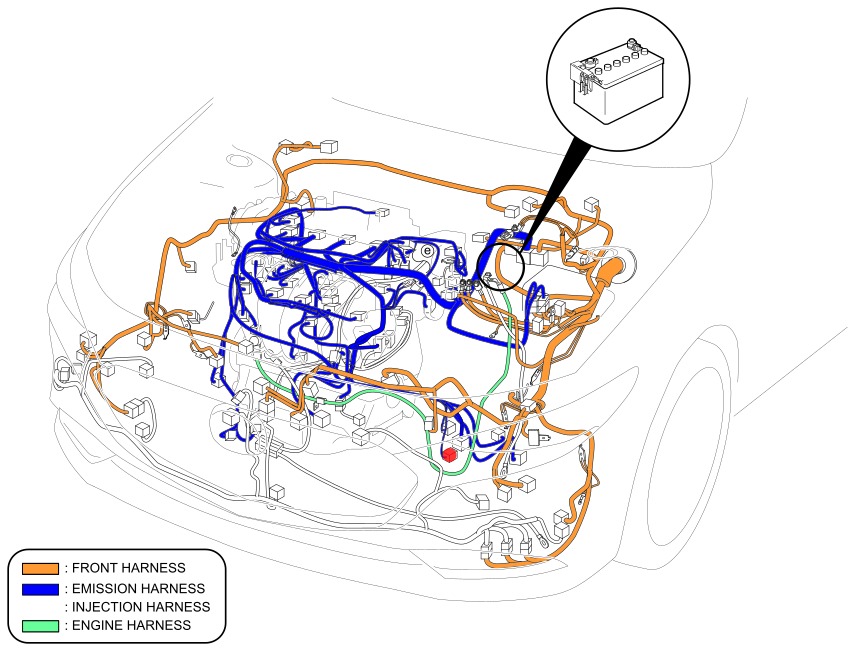

BACK-UP LIGHT SWITCH
0140-145
Wire Side
Terminal Side
Location View

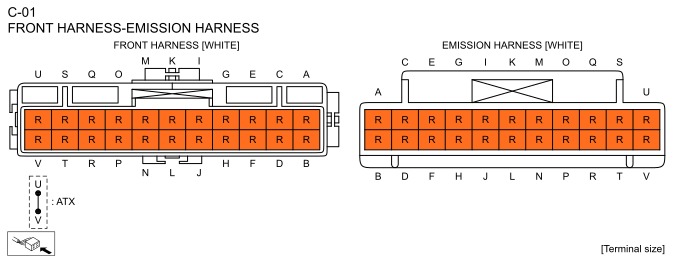

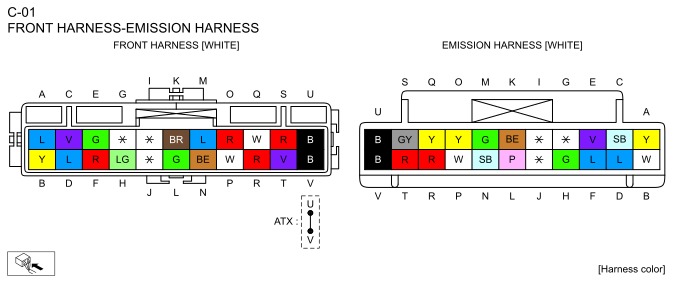

C-01
C-01
Wire Side
Terminal Side
Location View
C-06
C-06
Wire Side
Terminal Side
Location View

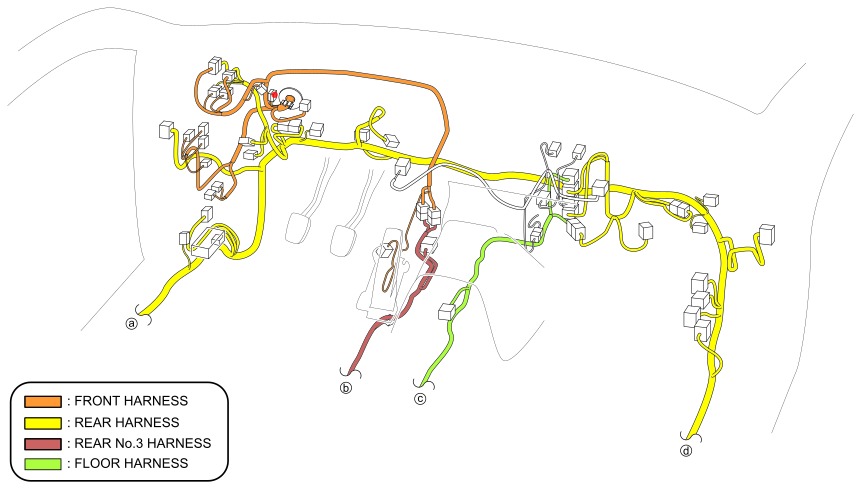

C-29
C-29
Wire Side
Location View
C-65
C-65
Wire Side
Location View
ELECTRICAL SUPPLY UNIT
0940-104E
Wire Side
Location View

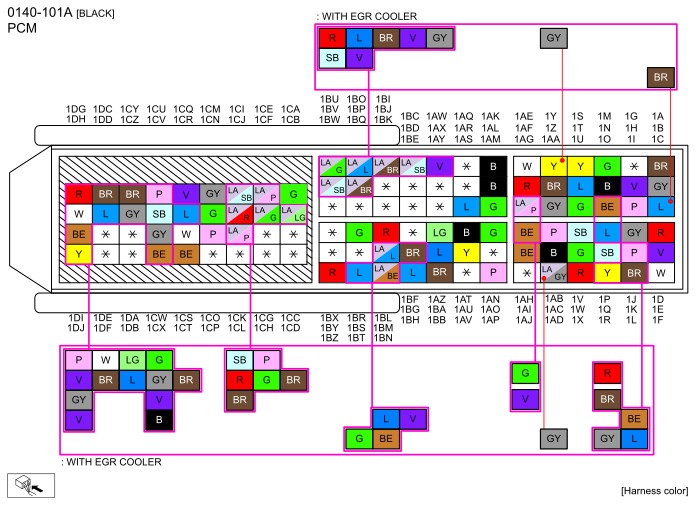

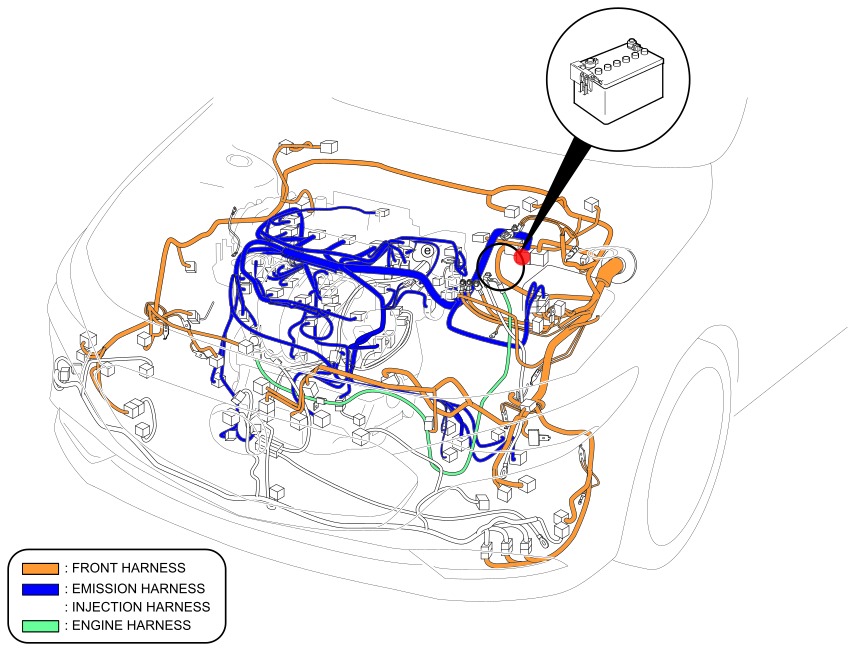

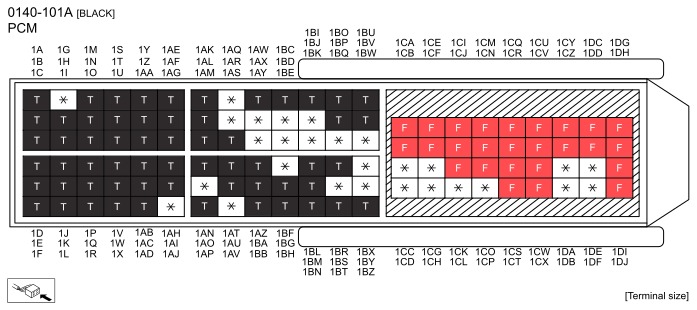

PCM
0140-101A
Wire Side
Terminal Side
Location View

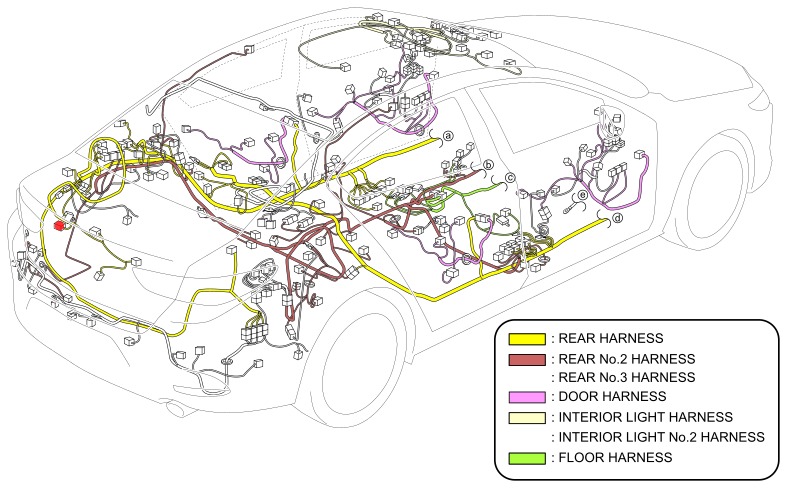

TRUNK LID LIGHT (LH)
0918-303
Wire Side
Terminal Side
Location View

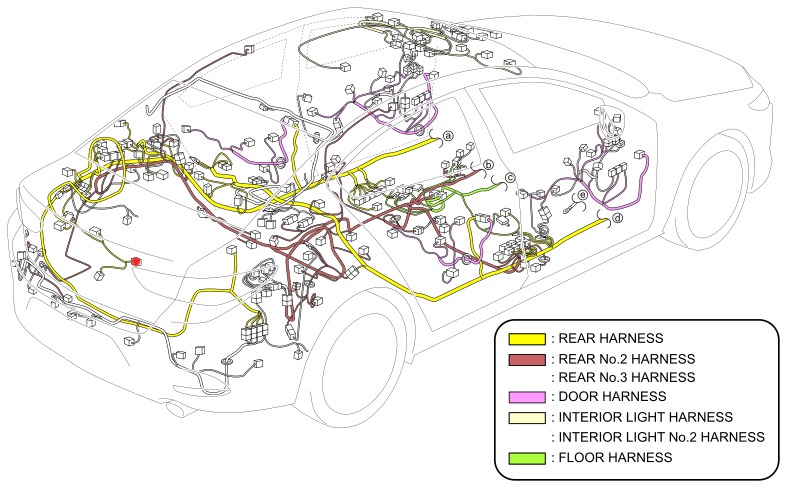

TRUNK LID LIGHT (RH)
0918-304
Wire Side
Terminal Side
Location View
