DTC Lookup

Possible Causes

• 1. Malfunction in wiring harness (including connector/terminal) between power outer mirror (passenger's side) and door-electrical supply unit (passenger's side) (See CIRCUIT

BCM

B11F7:09 [BCM]

SM3339469

---

id990210114100

System malfunction location	Power outer mirror (passenger's side) malfunction
Detection condition	• The door-electrical supply unit (passenger’s side) detects the power outer mirror (passenger’s side) malfunction.
Fail-safe	• Stops the following operations. ― Outer mirror automatic folding ― Heated outer mirrors ― Blind spot monitoring (BSM) system
Possible cause	1. Malfunction in wiring harness (including connector/terminal) between power outer mirror (passenger's side) and door-electrical supply unit (passenger's side) (See CIRCUIT INSPECTION.) (See CONNECTOR INSPECTION.) 2. Power outer mirror (passenger's side) malfunction (Refer to [POWER OUTER MIRROR INSPECTION] in workshop manual.) 3. Door-electrical supply unit (passenger's side) malfunction (Refer to [DOOR-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION] in workshop manual.) 4. Body control module (BCM) malfunction (Refer to [BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION] in workshop manual.)
Repeatability verification procedure	1. Clear the DTC recorded in the memory. (See CLEARING DTC.)

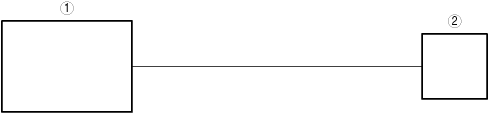

1	Door-electrical supply unit (passenger's side)
2	Power outer mirror (passenger's side)
