DTC Lookup

B11BA DTC

Audio System (w/o Bose (R) Type Audio)

Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector

Possible Causes

  • Intentionally pressing and holding steering switch
  • Clock spring connector or terminal malfunction
  • Malfunction in connectivity master unit (CMU) connector or terminal
  • Short to power supply, short to ground in steering switch signal circuit (audio)
  • Short to power supply, short to ground in s

Audio System (Bose (R) Type Audio) (4SD)

AUDIO SYSTEM (Bose® TYPE AUDIO)_B11BA2B

Connector Views

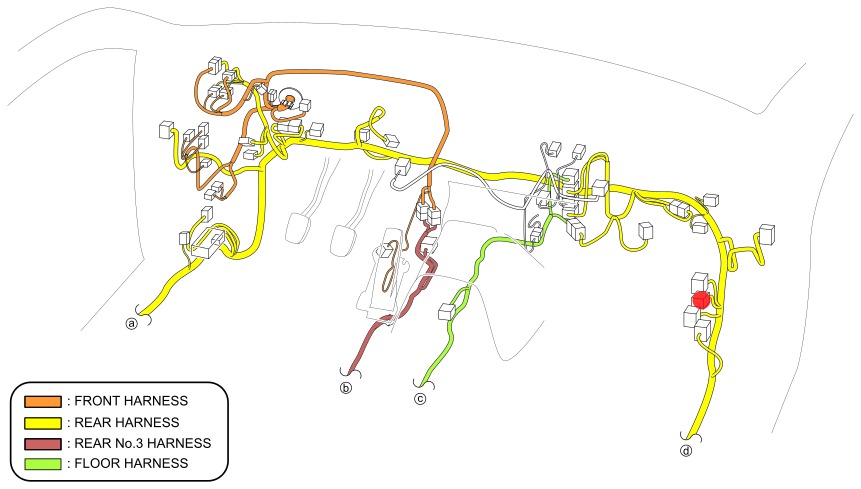

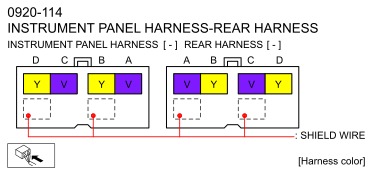

0920-114
0920-114
Wire Side
Location View
image   image  
0920-134
0920-134
Wire Side
Location View
image   image  
0920-135
0920-135
Wire Side
Location View
0922-604
0922-604
Wire Side
Location View
0922-702
0922-702
Wire Side
Terminal Side
Location View
AUDIO AMPLIFIER
0920-115A / 0920-115B / 0920-115C / 0920-115D
Wire Side
image   image   image   image  
Terminal Side
image   image   image  
Location View
C-03
C-03
Wire Side
Terminal Side
Location View
image   image  

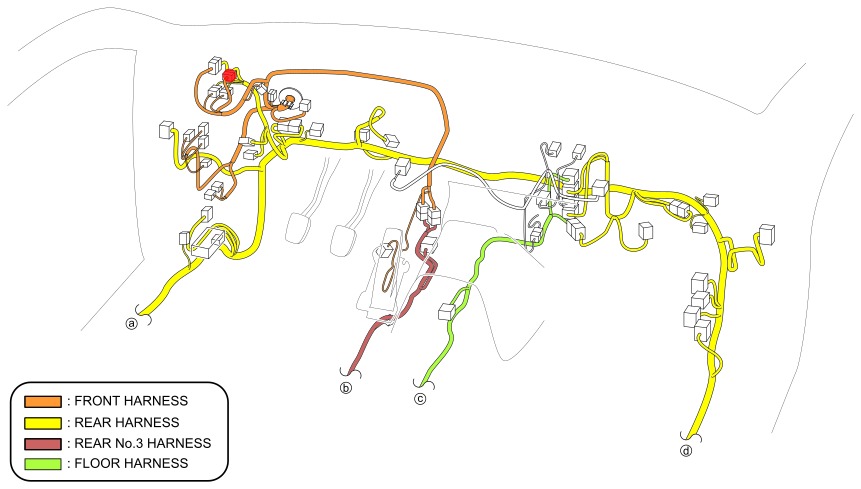

C-05
C-05
Wire Side
Terminal Side
Location View
C-06
C-06
Wire Side
Terminal Side
Location View
C-07
C-07
Wire Side
Terminal Side
Location View
C-13
C-13
Wire Side
Terminal Side
Location View
image   image  
C-14
C-14
Wire Side
Terminal Side
Location View
image   image  
C-16
C-16
Wire Side
Terminal Side
Location View
image   image  
C-17
C-17
Wire Side
Terminal Side
Location View
image   image  
C-22
C-22
Wire Side
Terminal Side
Location View
image   image  
C-23
C-23
Wire Side
Terminal Side
Location View
image   image  

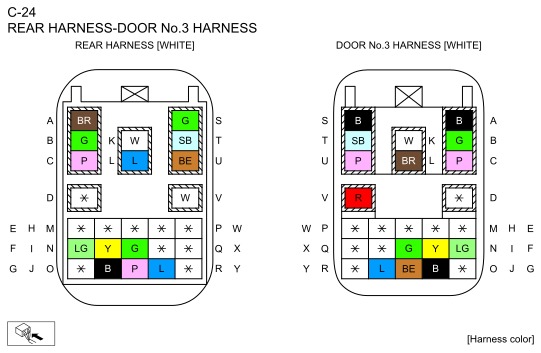

C-24
C-24
Wire Side
Terminal Side
Location View

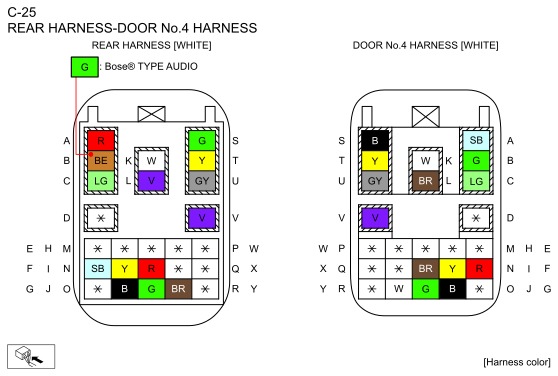

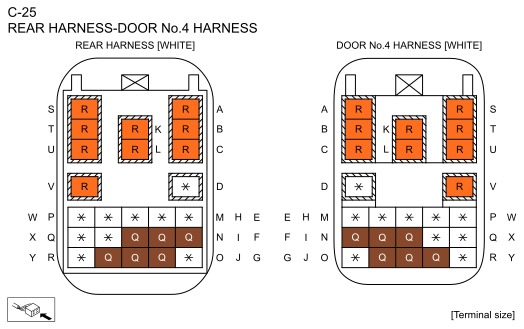

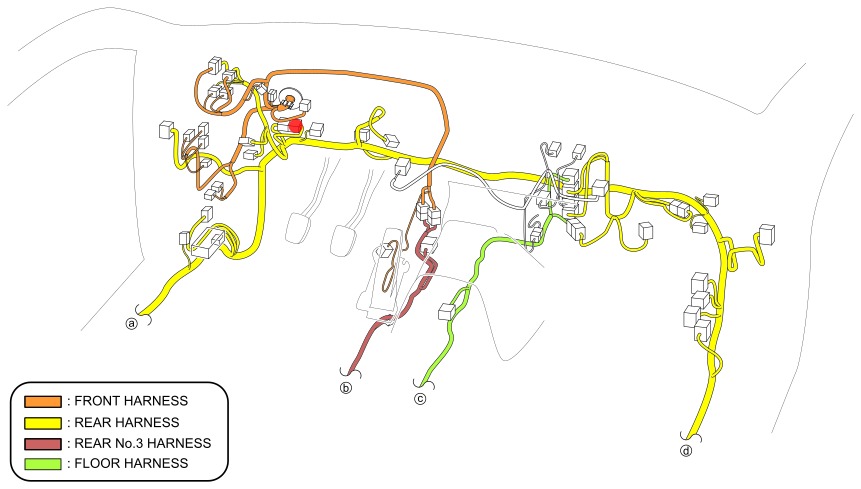

C-25
C-25
Wire Side
Terminal Side
Location View
C-29
C-29
Wire Side
Location View
C-39
C-39
Wire Side
Terminal Side
Location View
C-41
C-41
Wire Side
Terminal Side
Location View
C-42
C-42
Wire Side
Terminal Side
Location View
C-45
C-45
Wire Side
Terminal Side
Location View
C-46
C-46
Wire Side

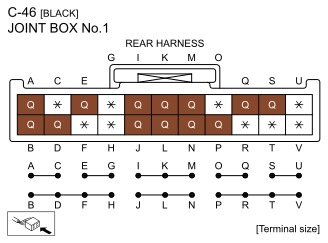

Terminal Side
Location View
C-47
C-47

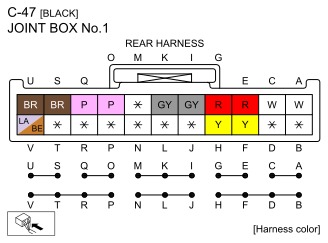

Wire Side

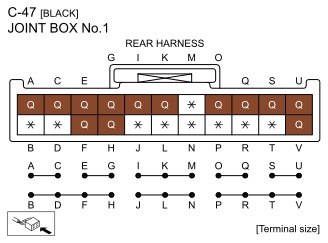

Terminal Side
Location View
C-48
C-48
Wire Side
Location View

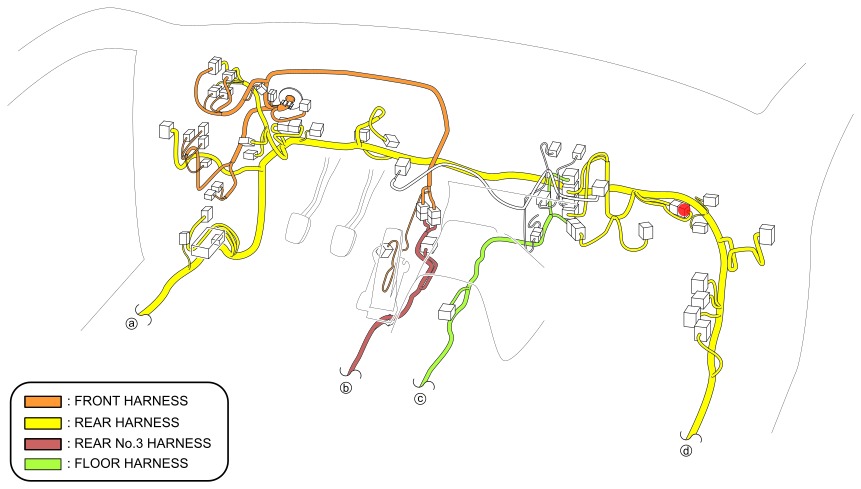

C-49
C-49
Wire Side
Location View
C-50
C-50
Wire Side
Terminal Side
Location View
C-63
C-63
Wire Side
Location View
CENTER DISPLAY
0920-102A / 0920-102B
Wire Side
image   image  
Terminal Side
Location View
CLOCK SPRING
0922-201
Wire Side
Terminal Side
Location View
COMMANDER SWITCH
0920-106
Wire Side
Terminal Side
Location View
CONNECTIVITY MASTER UNIT
0920-101A / 0920-101B / 0920-101C / 0920-101D / 0920-101E / 0920-101F / 0920-101G
Wire Side
image   image   image   image   image   image   image  
Terminal Side
Location View
COWL SIDE WOOFER (LH)
0920-122
Wire Side
Terminal Side
Location View
COWL SIDE WOOFER (RH)
0920-123
Wire Side
Terminal Side

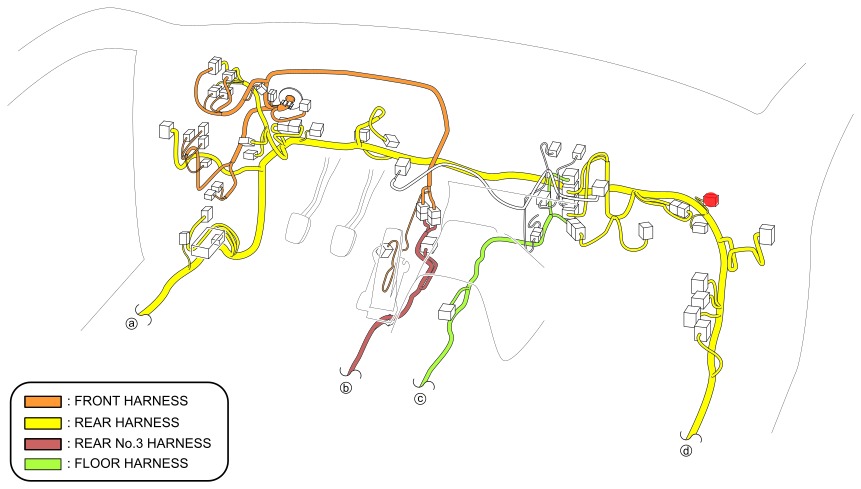

Location View
CRUISE CONTROL SWITCH / CLOCK SPRING / STEERING SWITCH
0922-205
Wire Side
Terminal Side
Location View
EMERGENCY CALL SPEAKER/MICROPHONE
0922-704
Wire Side
Terminal Side
Location View
FRONT CENTER SPEAKER
0920-124
Wire Side
Terminal Side
Location View
FRONT DOOR SPEAKER (LH)
0920-116
Wire Side
Terminal Side
Location View
FRONT DOOR SPEAKER (RH)
0920-117
Wire Side
Terminal Side
Location View
GPS ANTENNA
0920-133
Wire Side
Location View

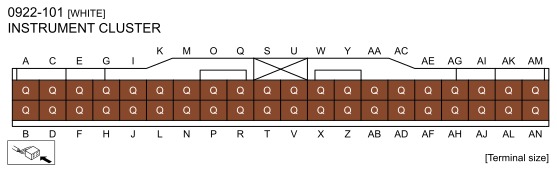

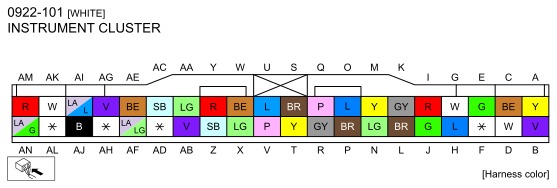

INSTRUMENT CLUSTER
0922-101
Wire Side
Terminal Side
Location View
MICROPHONE
0920-132
Wire Side
Terminal Side
Location View
PARKING ASSIST UNIT (OPTICAL) / 360º VIEW MONITOR CONTROL MODULE
1501-401F
Wire Side
Location View
REAR CENTER SPEAKER
0920-125
Wire Side
Terminal Side
Location View

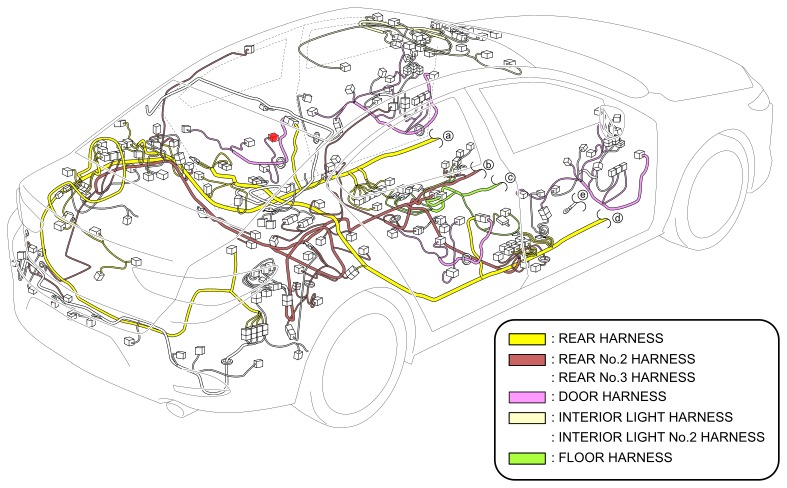

REAR DOOR SPEAKER (LH)
0920-118
Wire Side
Terminal Side
Location View

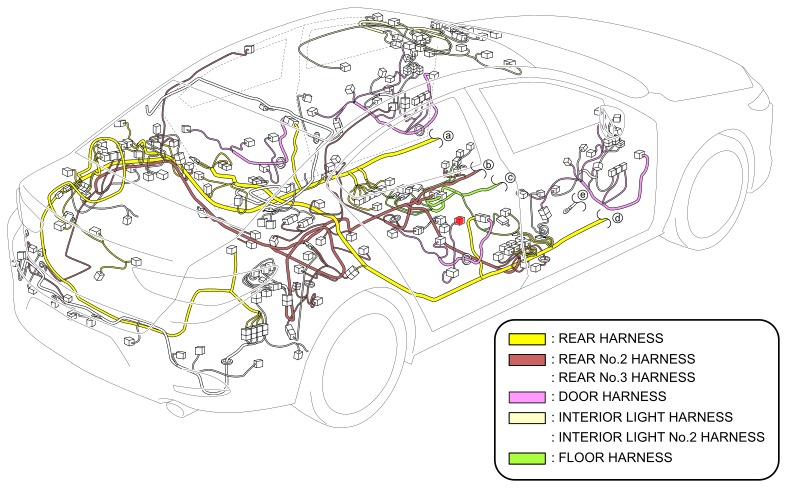

REAR DOOR SPEAKER (RH)
0920-119
Wire Side
Terminal Side
Location View

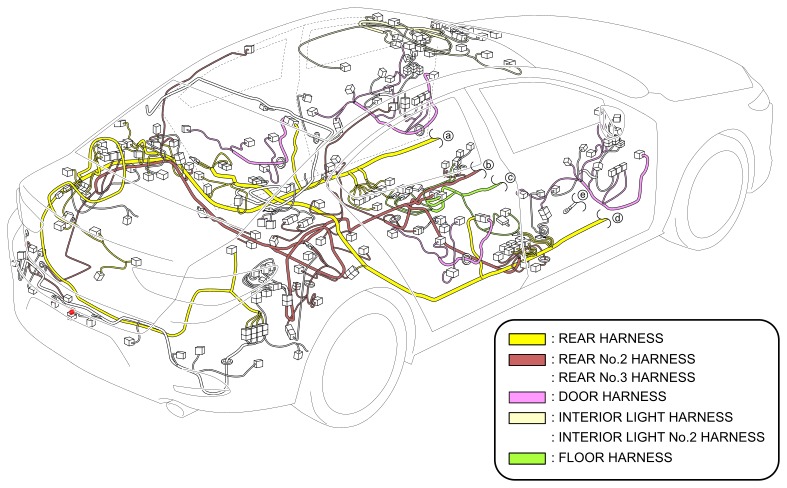

REAR MOUNT CAMERA
0920-136
Wire Side
Location View
REAR SIDE SPEAKER (LH)
0920-128
Wire Side
Terminal Side
Location View
REAR SIDE SPEAKER (RH)
0920-129
Wire Side
Terminal Side
Location View
REMOTE TUNER (RT)
0920-107A / 0920-107B / 0920-107C / 0920-107D
Wire Side
image   image   image   image  
Terminal Side
Location View
Sirius XM SATELLITE RADIO ANTENNA AMPLIFIER
0920-111
Wire Side
Location View
TEL ANTENNA / TEL ANTENNA No.1
0922-605
Wire Side
Location View
TEL ANTENNA No.2
0922-606
Wire Side
Location View
TELEMATICS COMMUNICATION UNIT
0922-601D / 0922-701A / 0922-701D
Wire Side
image   image   image  
Terminal Side
Location View
TWEETER (LH)
0920-120
Wire Side
Terminal Side
Location View
TWEETER (RH)
0920-121
Wire Side
Terminal Side
Location View

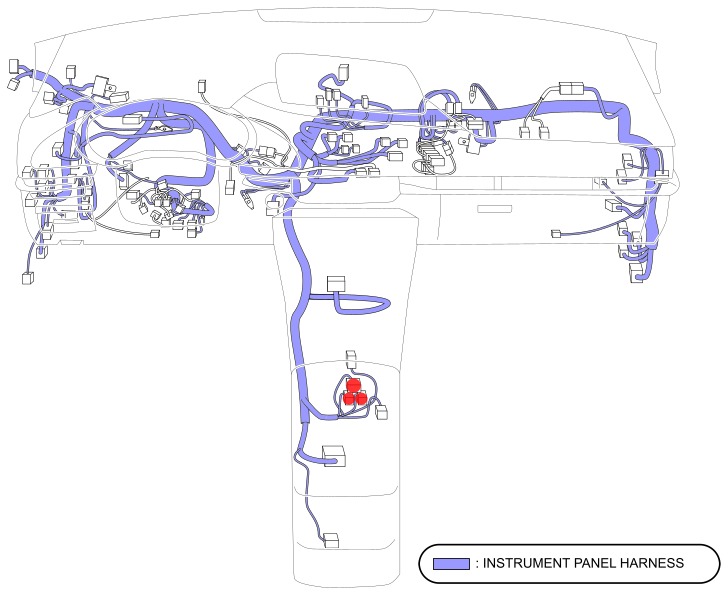

USB PORT / SD CARD SLOT HUB
0920-104A / 0920-104B / 0920-104C
Wire Side
image   image   image  
Terminal Side
Location View
