DTC Lookup

Possible Causes

• 1. Malfunction in wiring harness (including connector/terminal) between body ground and front door latch and lock actuator (passenger's side) (See CIRCUIT

BCM

B1174:11 [BCM]

SM3339712

---

id990210471600

System malfunction location	Front door lock-link switch (passenger's side) unlock circuit malfunction
Detection condition	• The door-electrical supply unit (passenger's side) detects a short to ground in the front door lock-link switch (passenger's side) unlock circuit. Precondition • The front door lock-link switch (passenger's side) locked.
Fail-safe	• Not applicable
Possible cause	1. Front door lock-link switch (passenger's side) malfunction (Refer to [FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION] in workshop manual.) 2. Malfunction in wiring harness (including connector/terminal) between front door latch and lock actuator (passenger's side) and door-electrical supply unit (passenger's side) (See CIRCUIT INSPECTION.) (See CONNECTOR INSPECTION.) 3. Door-electrical supply unit (passenger's side) malfunction (Refer to [DOOR-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION] in workshop manual.) 4. Body control module (BCM) malfunction (Refer to [BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION] in workshop manual.)
Repeatability verification procedure	1. Clear the DTC recorded in the memory. (See CLEARING DTC.) 2. Turn the front door lock-link switch (passenger's side) lock.

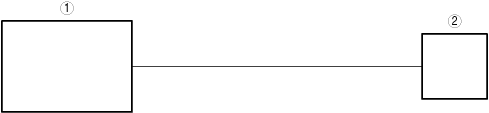

1	Door-electrical supply unit (passenger's side)
2	Front door latch and lock actuator (passenger's side)
