B1127 DTC

Short to front seat passenger-side side air bag module circuit and other air bag module circuits

Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector
Component Connector

Possible Causes

  • injury or damage the system due to a mis-operation. When performing an

Air Bag System (Includes Pre-Tensioner Seat Belt Information) (4SD)

AIR BAG SYSTEM (INCLUDES PRE-TENSIONER SEAT BELT INFORMATION)_B11271A

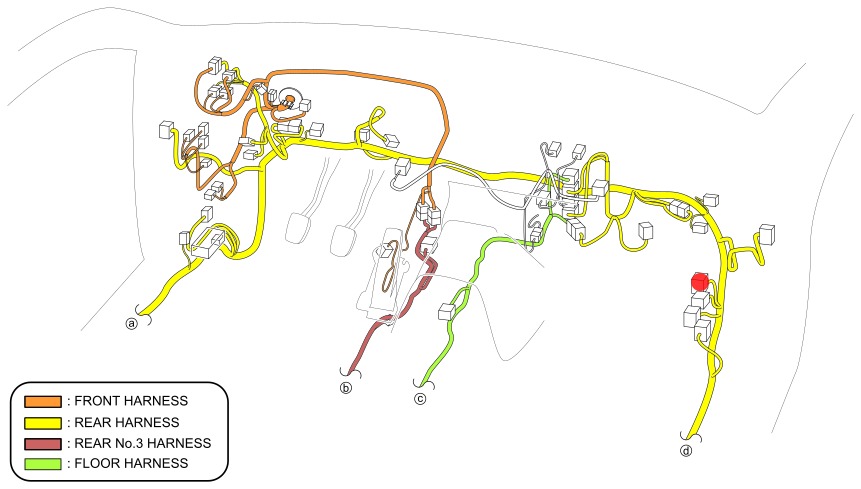

Connector Views

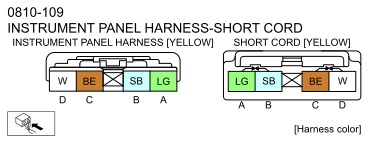

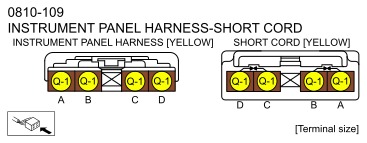

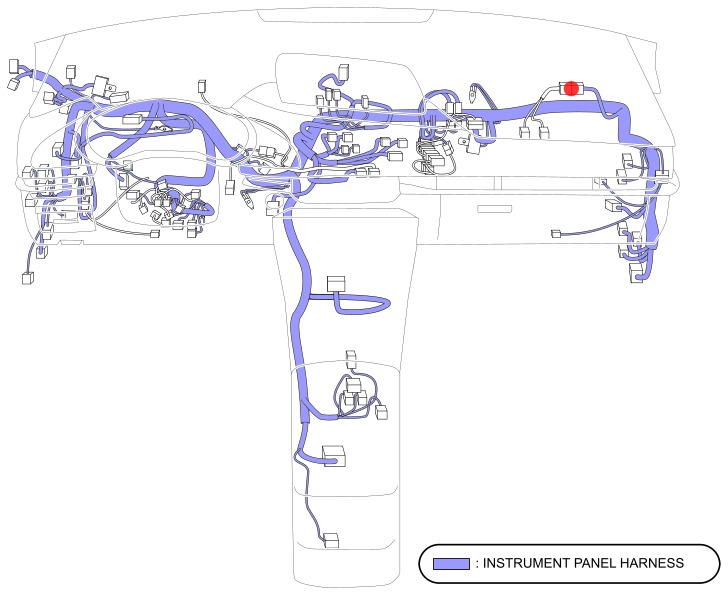

0810-109
0810-109
Wire Side
Terminal Side

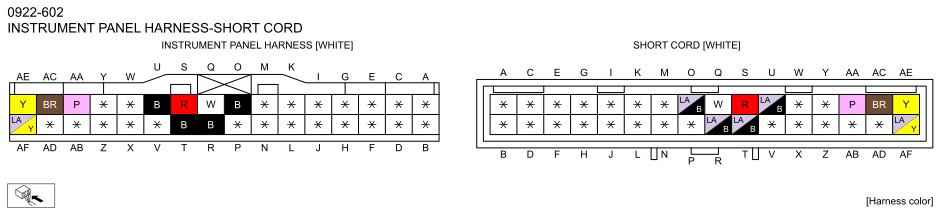

Location View

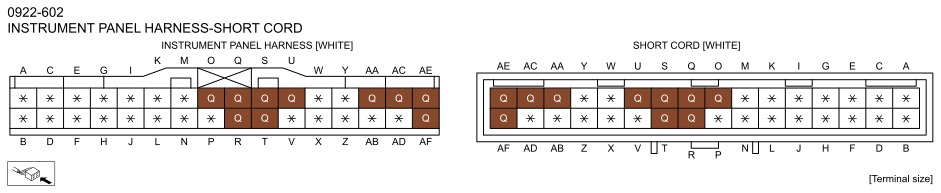

0922-602
0922-602
Wire Side
Terminal Side
Location View

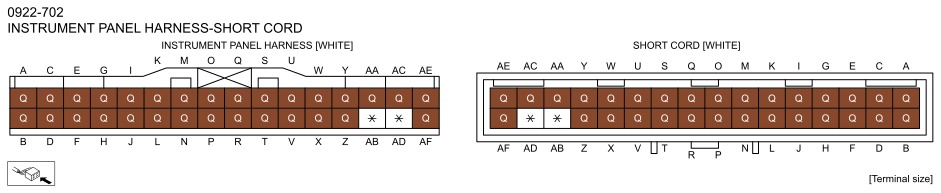

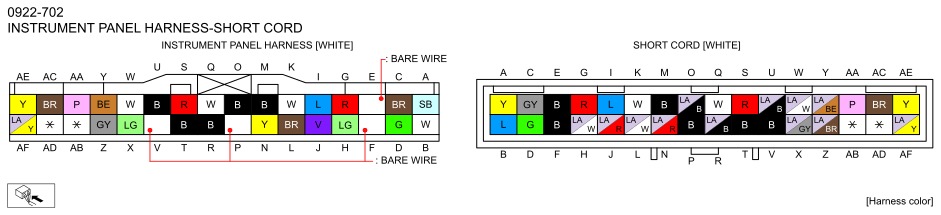

0922-702
0922-702
Wire Side
Terminal Side
Location View
BCM

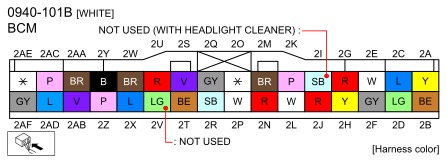

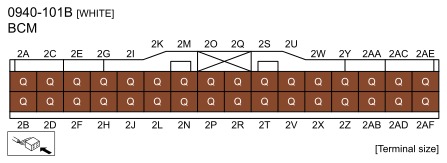

0940-101A / 0940-101B
Wire Side
image   image  
Terminal Side
Location View

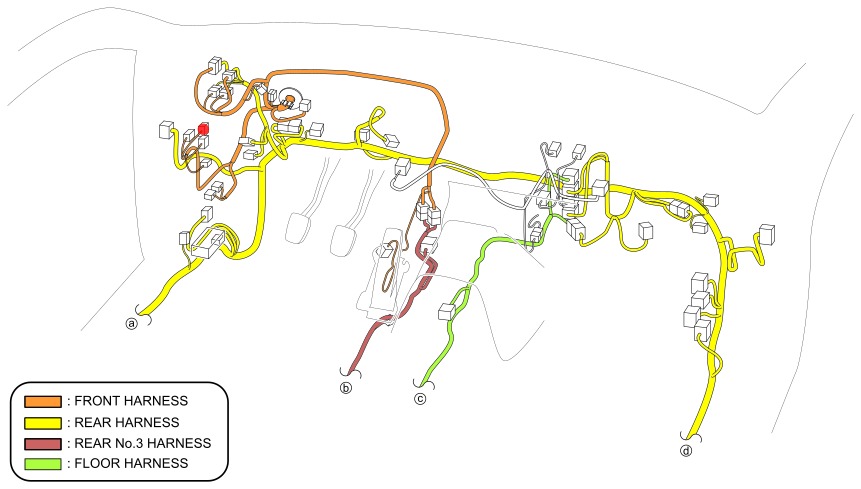

C-03
C-03
Wire Side
Terminal Side
Location View
image   image  

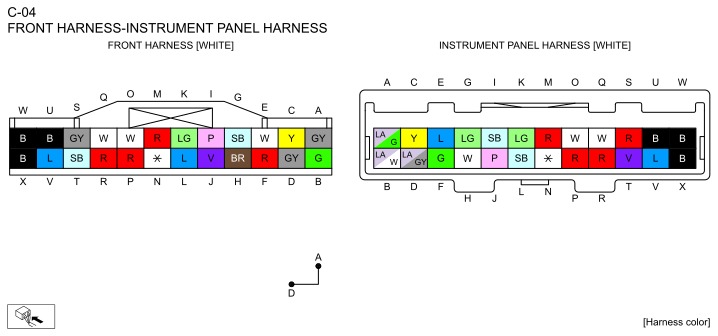

C-04
C-04
Wire Side
Terminal Side
Location View
image   image  

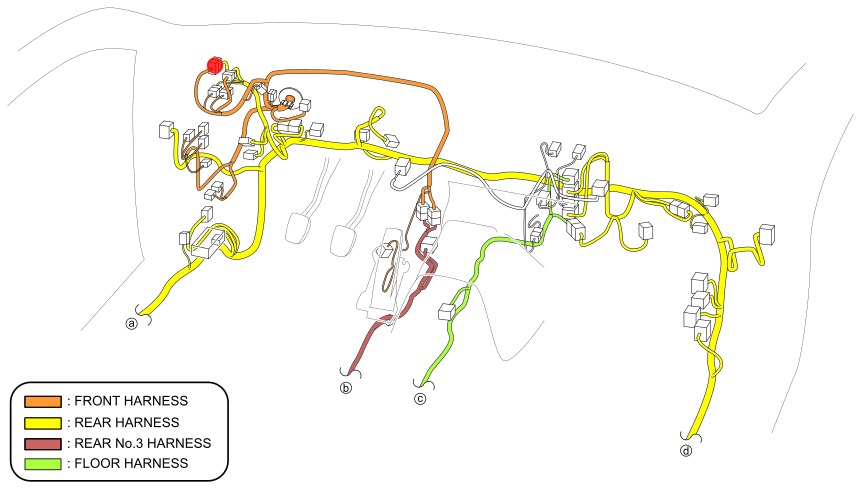

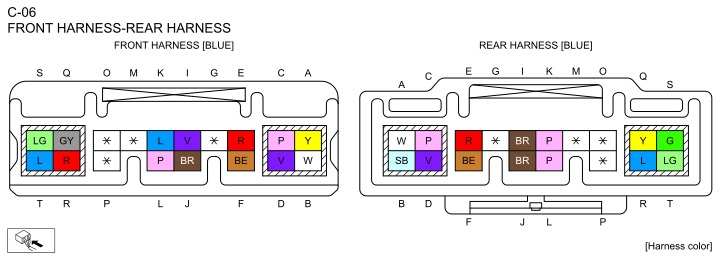

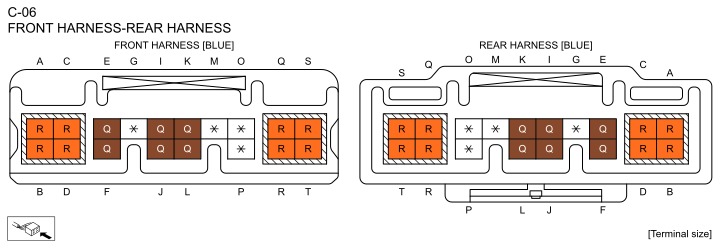

C-06
C-06
Wire Side
Terminal Side
Location View

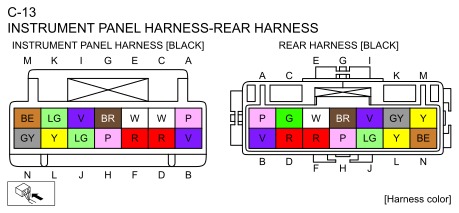

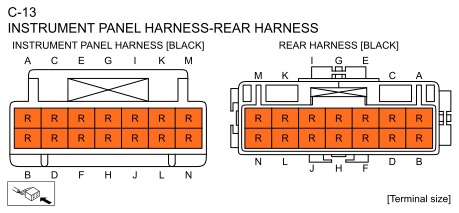

C-13
C-13
Wire Side
Terminal Side
Location View
image   image  

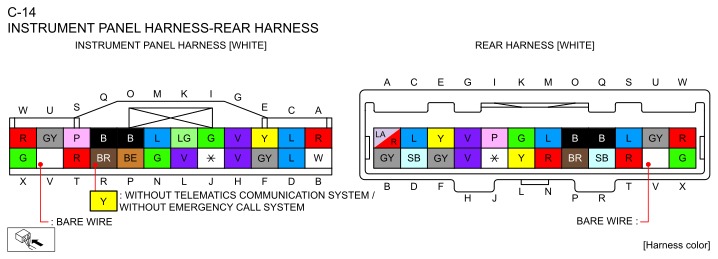

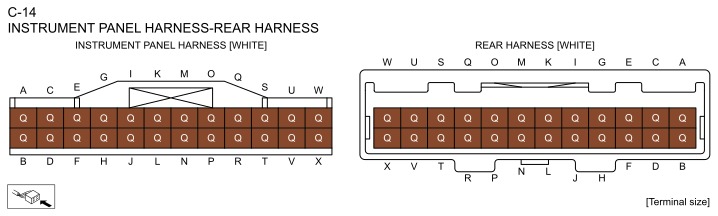

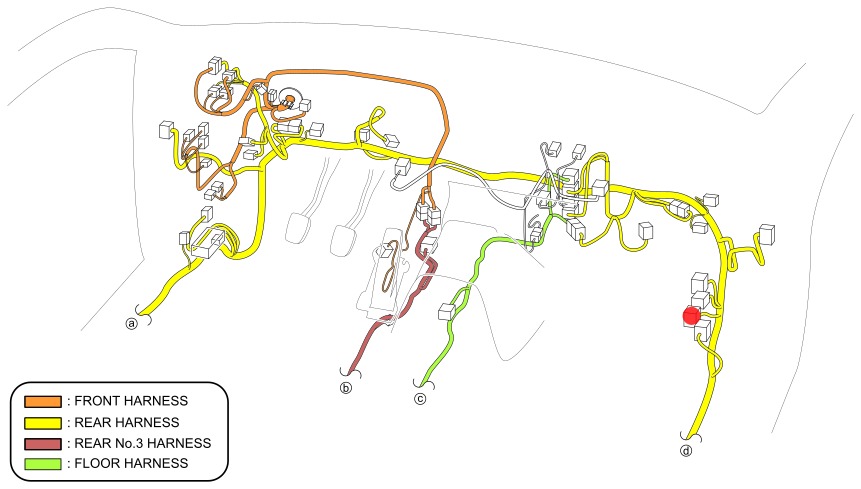

C-14
C-14
Wire Side
Terminal Side
Location View
image   image  

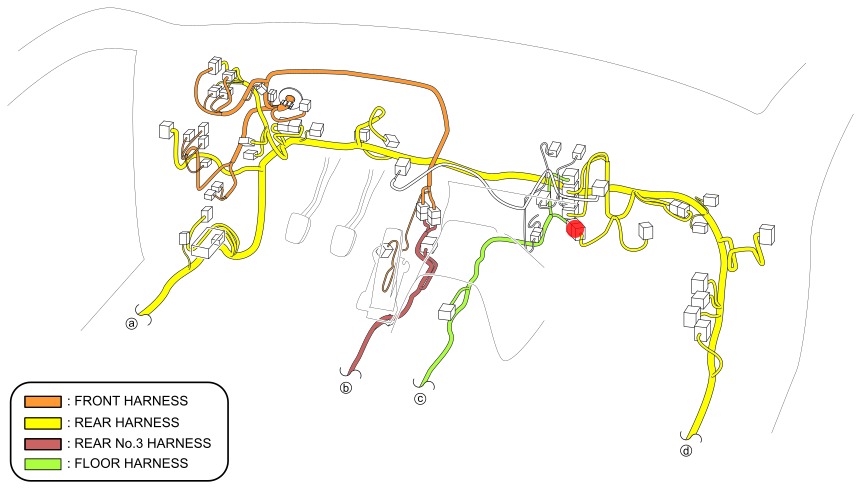

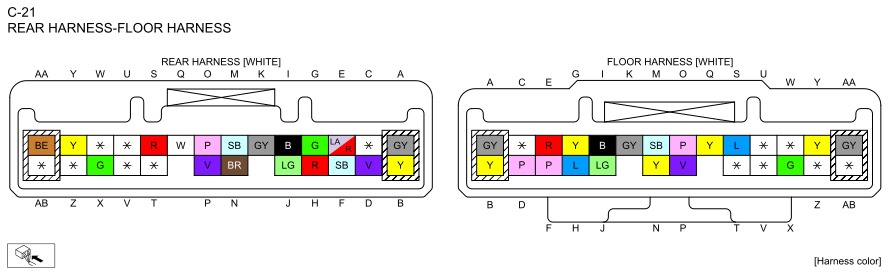

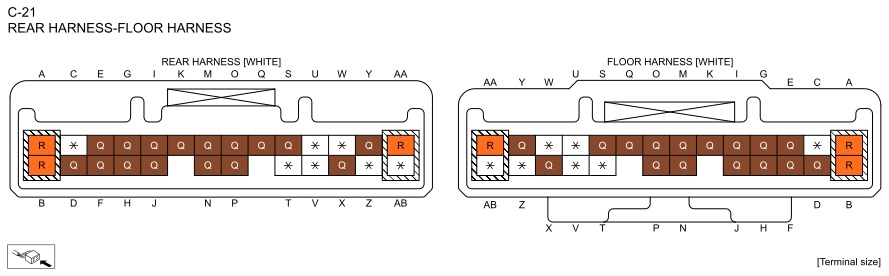

C-21
C-21
Wire Side
Terminal Side
Location View

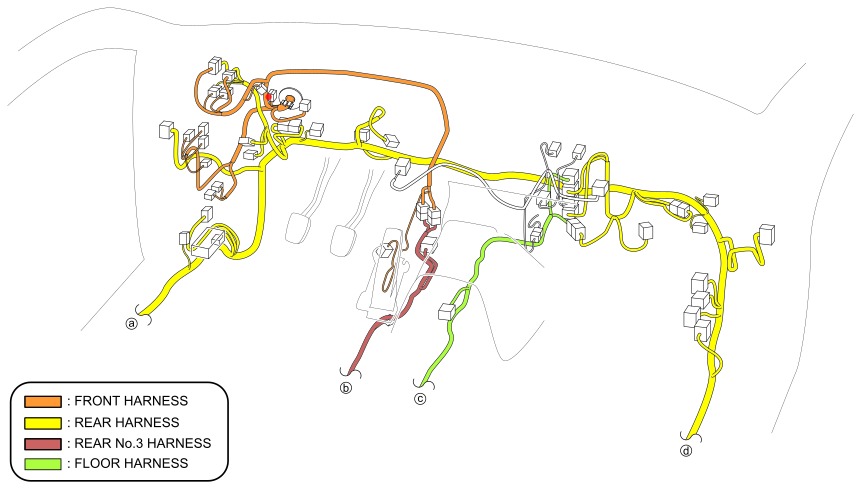

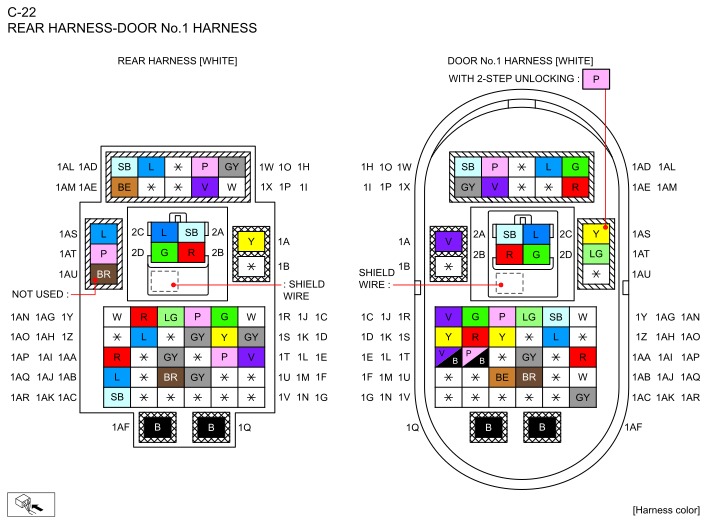

C-22
C-22
Wire Side
Terminal Side
Location View
image   image  

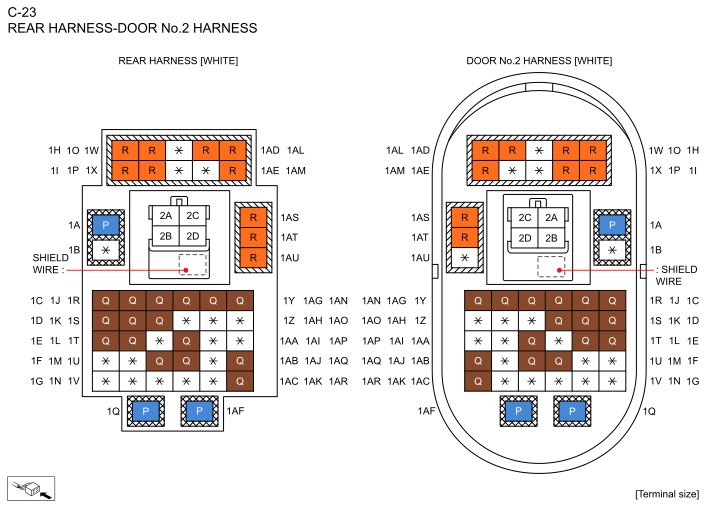

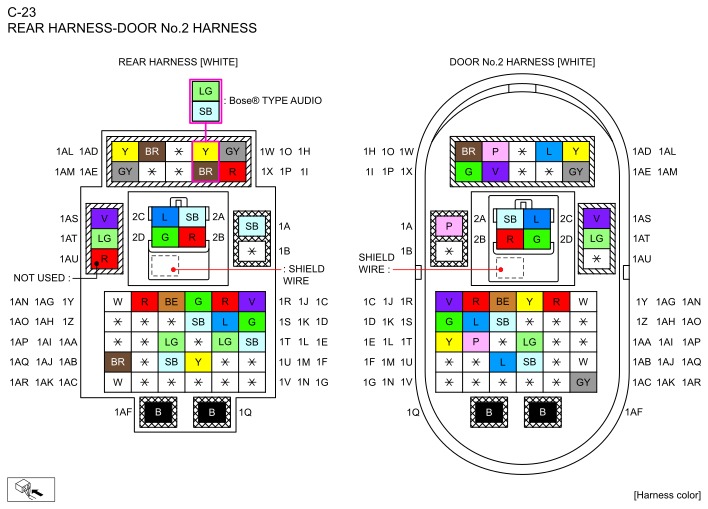

C-23
C-23
Wire Side
Terminal Side
Location View
image   image  
C-28
C-28
Wire Side
Location View

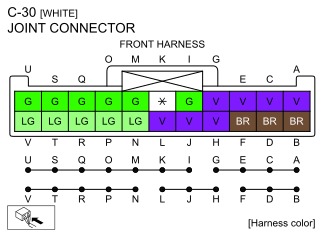

C-30
C-30
Wire Side
Location View

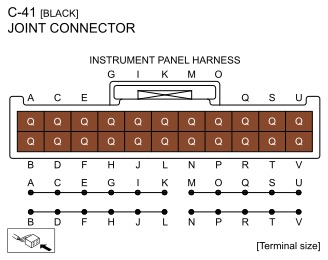

C-41
C-41
Wire Side
Terminal Side
Location View

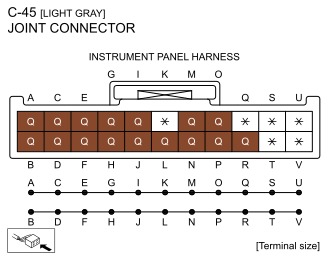

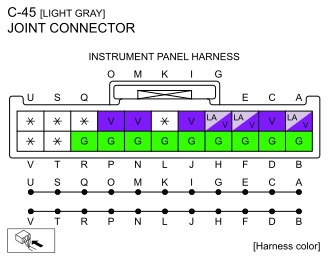

C-45
C-45
Wire Side
Terminal Side
Location View

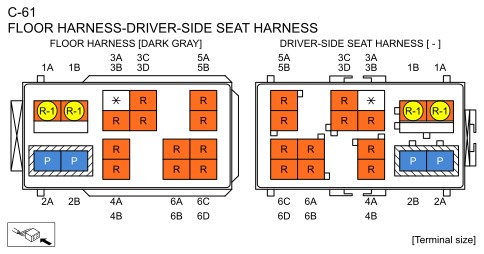

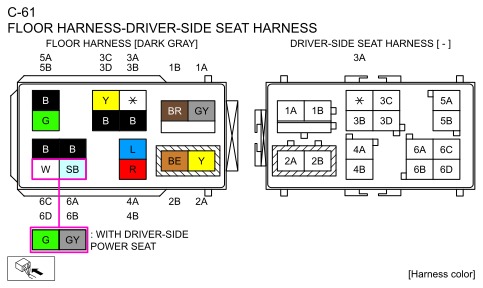

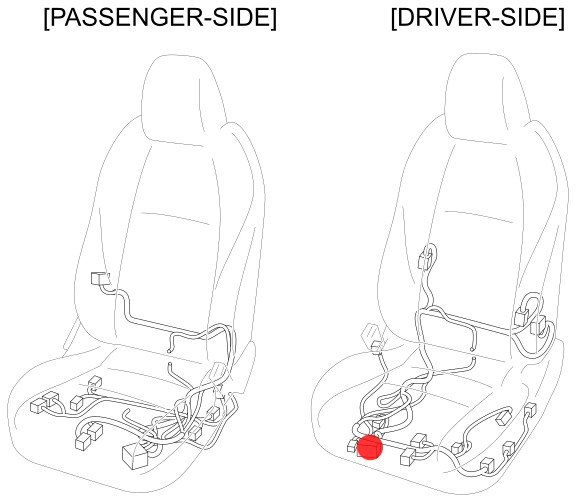

C-61
C-61
Wire Side
Terminal Side
Location View
image   image  

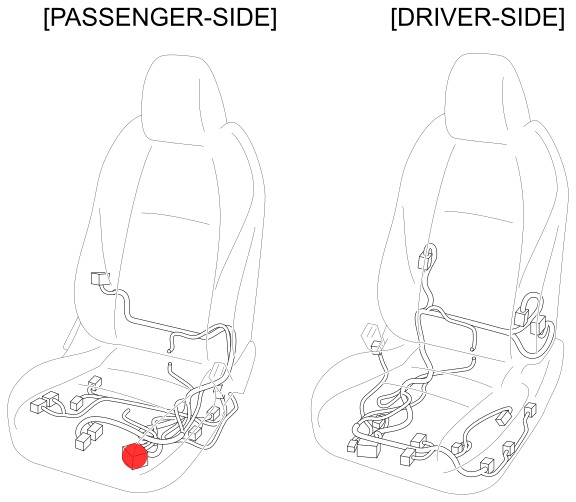

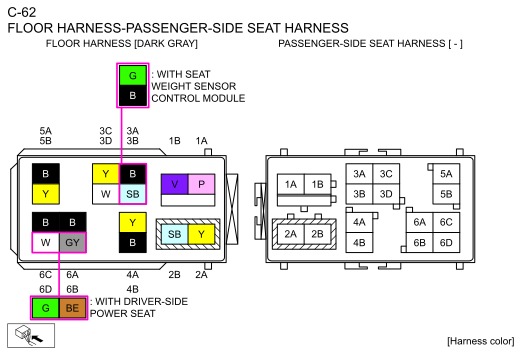

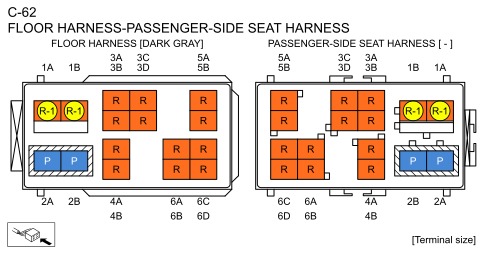

C-62
C-62
Wire Side
Terminal Side
Location View
image   image  
CLOCK SPRING
0810-107
Wire Side
Terminal Side
Location View

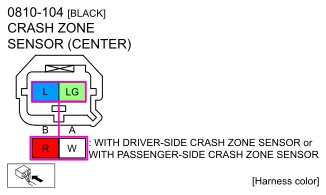

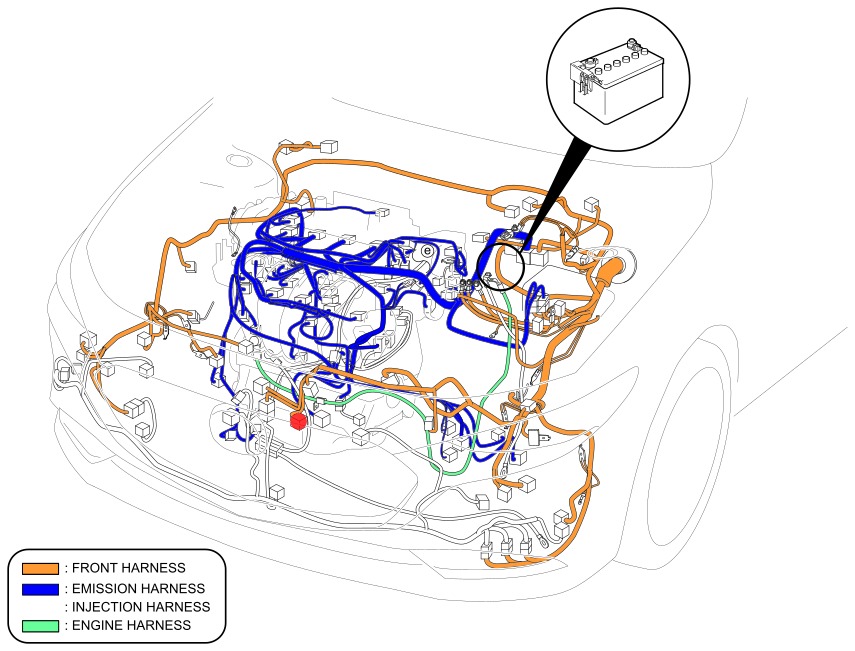

CRASH ZONE SENSOR (CENTER)
0810-104
Wire Side
Terminal Side
Location View
DASH-ELECTRICAL SUPPLY UNIT
0940-103A / 0940-103C
Wire Side
image   image  
Terminal Side
image   image  
Location View

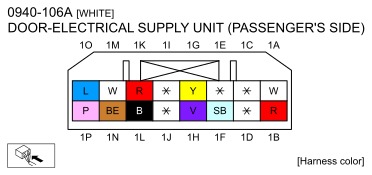

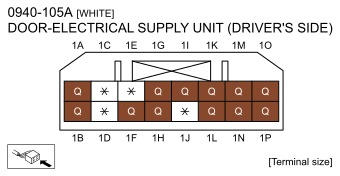

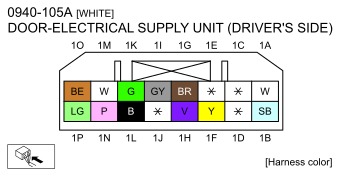

DOOR-ELECTRICAL SUPPLY UNIT (DRIVER'S SIDE)
0940-105A
Wire Side
Terminal Side
Location View

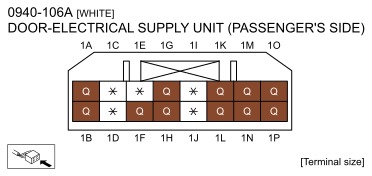

DOOR-ELECTRICAL SUPPLY UNIT (PASSENGER'S SIDE)
0940-106A
Wire Side
Terminal Side
Location View
DRIVER-SIDE AIR BAG MODULE
0810-108A / 0810-108B
Wire Side
image   image  
Location View

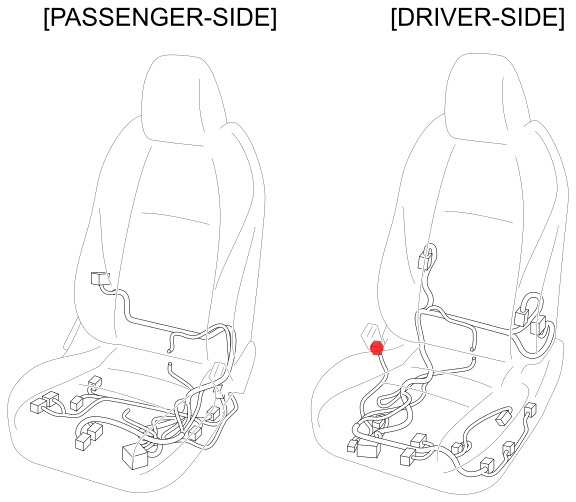

DRIVER-SIDE BUCKLE SWITCH
0810-125
Wire Side
Terminal Side
Location View
DRIVER-SIDE CRASH ZONE SENSOR
0810-105
Wire Side
Terminal Side
Location View

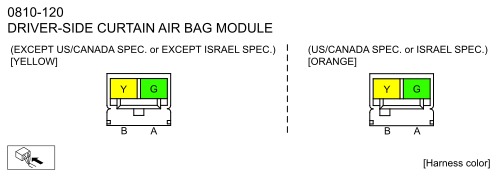

DRIVER-SIDE CURTAIN AIR BAG MODULE
0810-120
Wire Side
Location View
DRIVER-SIDE FRONT PRE-TENSIONER SEAT BELT
0810-114
Wire Side
Location View
DRIVER-SIDE KNEE AIR BAG MODULE
0810-102
Wire Side
Location View
DRIVER-SIDE PRESSURE SENSOR
0810-122
Wire Side
Terminal Side
Location View
DRIVER-SIDE REAR PRE-TENSIONER SEAT BELT
0810-116
Wire Side
Location View

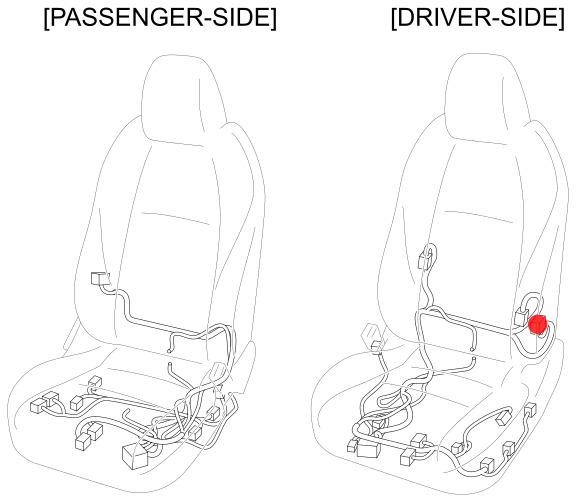

DRIVER-SIDE SIDE AIR BAG MODULE
0810-119
Wire Side
Location View

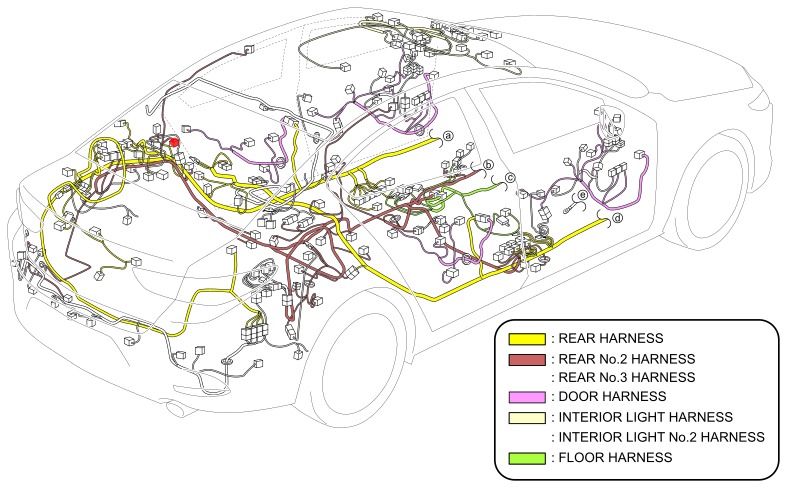

DRIVER-SIDE SIDE AIR BAG MODULE FOR REAR PASSENGER
0810-133
Wire Side
Location View

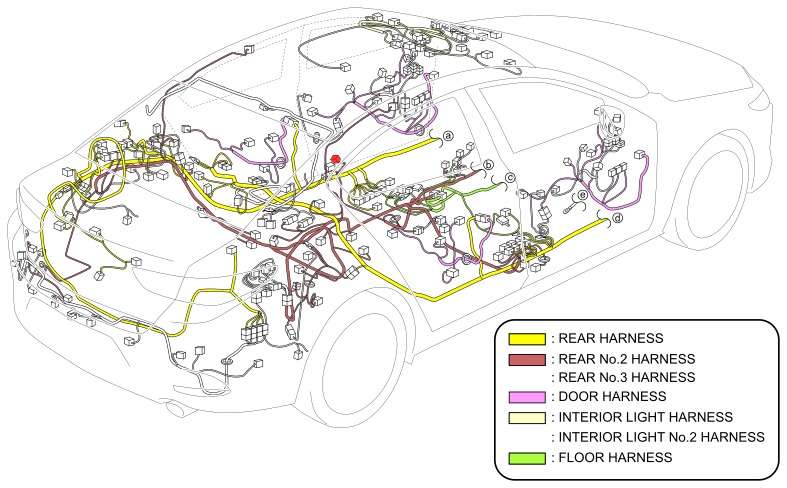

DRIVER-SIDE SIDE AIR BAG SENSOR No.1
0810-111
Wire Side
Terminal Side
Location View
DRIVER-SIDE SIDE AIR BAG SENSOR No.2
0810-135
Wire Side
Terminal Side
Location View
PASSENGER-SIDE AIR BAG MODULE
0810-110A / 0810-110B
Wire Side
image   image  
Location View
PASSENGER-SIDE BUCKLE SWITCH
0810-128
Wire Side
Terminal Side
Location View

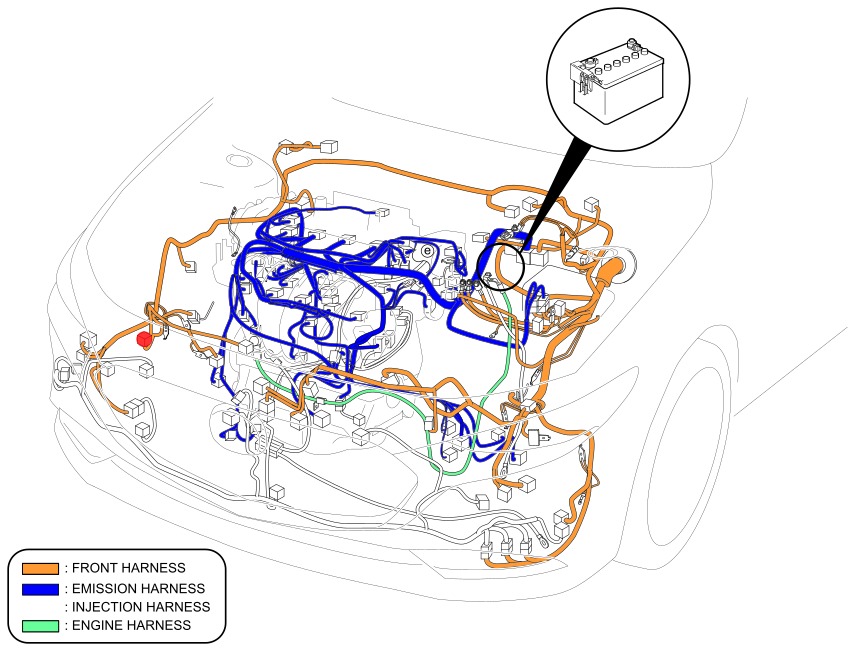

PASSENGER-SIDE CRASH ZONE SENSOR
0810-106
Wire Side
Terminal Side
Location View

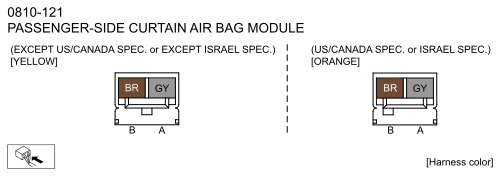

PASSENGER-SIDE CURTAIN AIR BAG MODULE
0810-121
Wire Side
Location View
PASSENGER-SIDE FRONT PRE-TENSIONER SEAT BELT
0810-115
Wire Side
Location View
PASSENGER-SIDE KNEE AIR BAG MODULE
0810-103
Wire Side
Location View
PASSENGER-SIDE PRESSURE SENSOR
0810-123
Wire Side
Terminal Side
Location View
PASSENGER-SIDE REAR PRE-TENSIONER SEAT BELT
0810-117
Wire Side
Location View

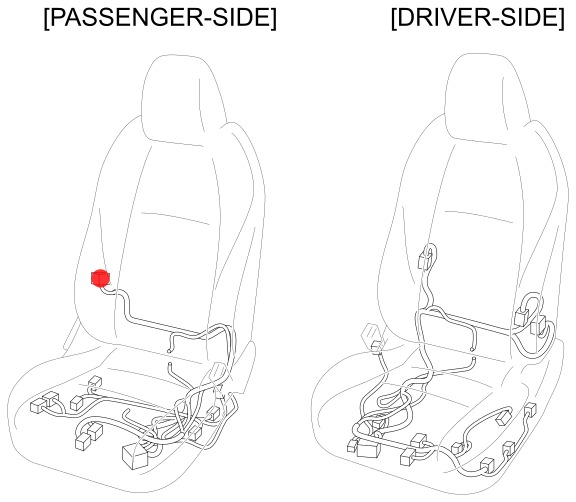

PASSENGER-SIDE SIDE AIR BAG MODULE
0810-118
Wire Side
Location View

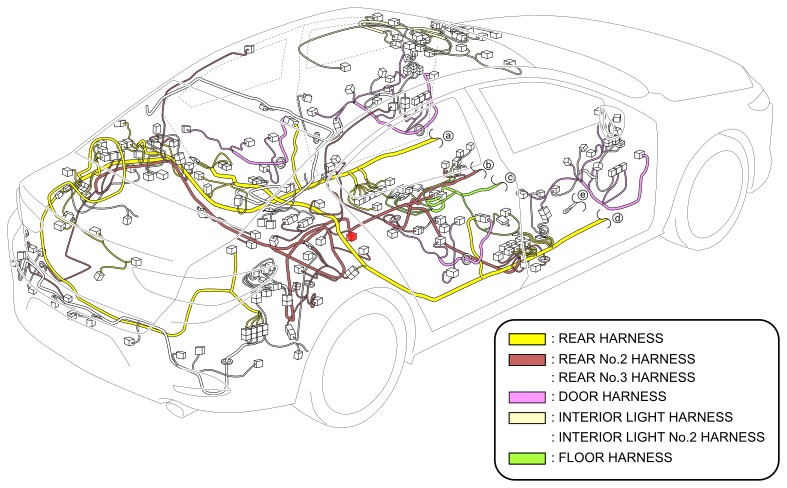

PASSENGER-SIDE SIDE AIR BAG MODULE FOR REAR PASSENGER
0810-134
Wire Side
Location View
PASSENGER-SIDE SIDE AIR BAG SENSOR No.1
0810-112
Wire Side
Terminal Side
Location View
PASSENGER-SIDE SIDE AIR BAG SENSOR No.2
0810-136
Wire Side
Terminal Side
Location View

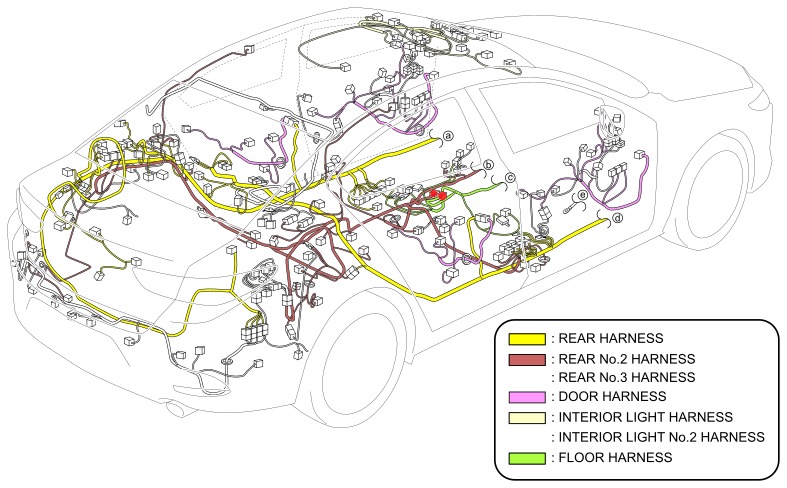

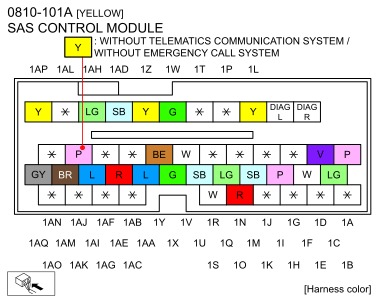

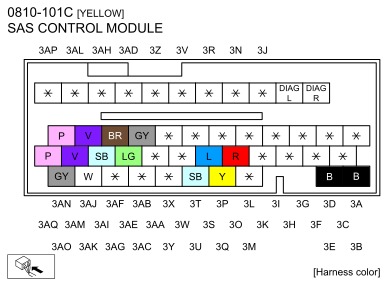

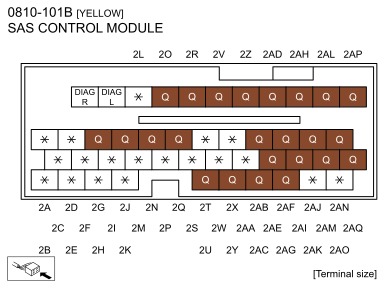

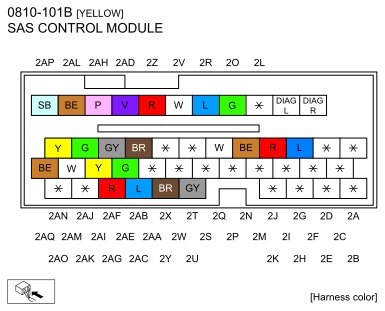

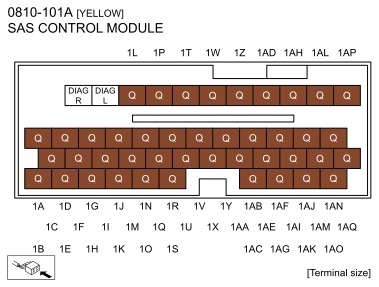

SAS CONTROL MODULE
0810-101A / 0810-101B / 0810-101C
Wire Side
image   image   image  
Terminal Side
image   image   image  
Location View
image   image  

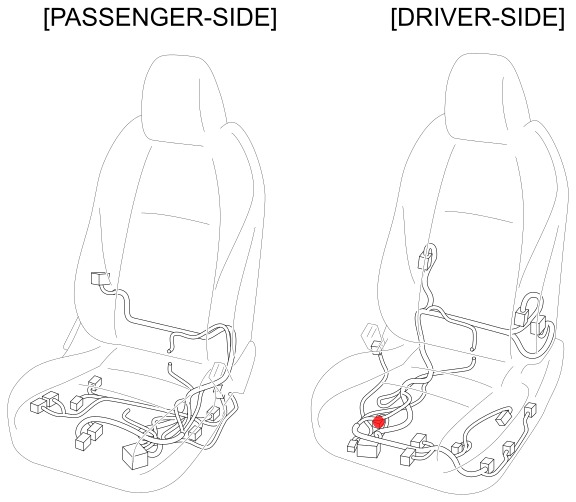

SEAT TRACK POSITION SENSOR
0810-126
Wire Side
Terminal Side
Location View
SEAT WEIGHT SENSOR (LF)
0810-129
Wire Side
Terminal Side
Location View
SEAT WEIGHT SENSOR (LR)
0810-131
Wire Side
Terminal Side
Location View

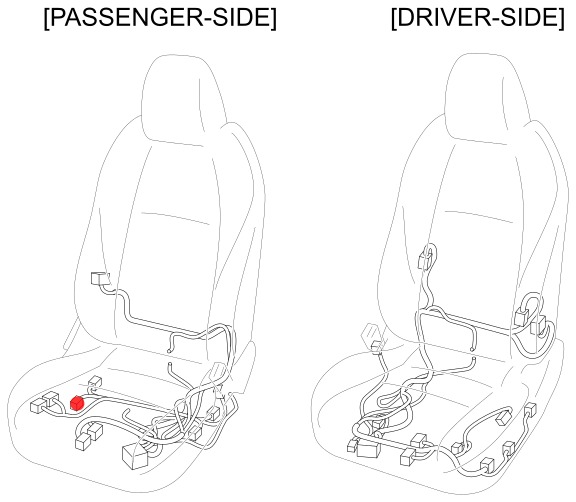

SEAT WEIGHT SENSOR (RF)
0810-130
Wire Side
Terminal Side
Location View

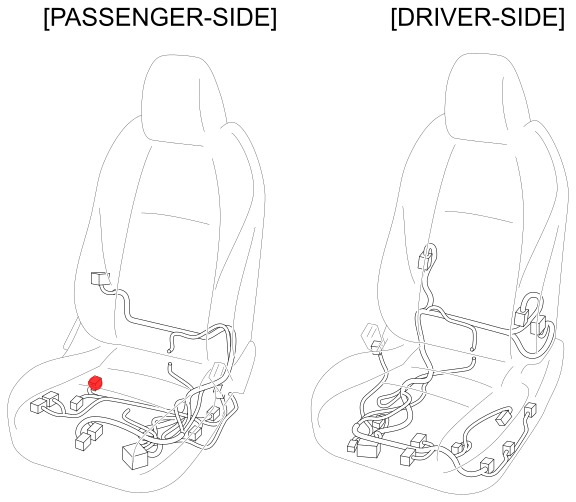

SEAT WEIGHT SENSOR (RR)
0810-132
Wire Side
Terminal Side
Location View

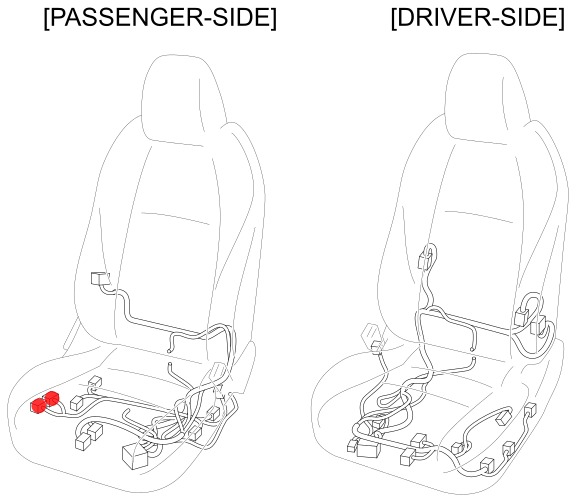

SEAT WEIGHT SENSOR CONTROL MODULE
0810-127A / 0810-127B
Wire Side
image   image  
Terminal Side
image   image  
Location View

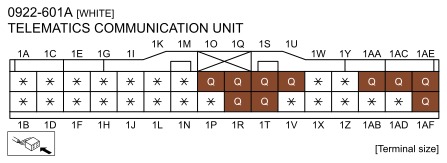

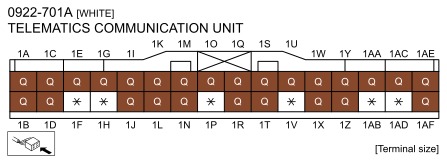

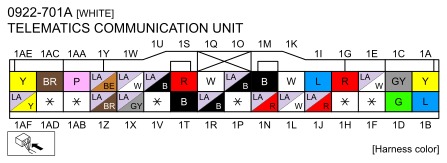

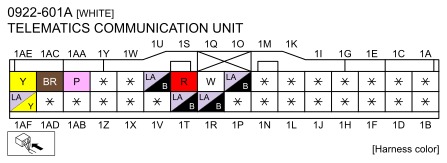

TELEMATICS COMMUNICATION UNIT
0922-601A / 0922-701A
Wire Side
image   image  
Terminal Side
image   image  
Location View
