B1032:11 [DASH_ESU]
id990260102800
| System malfunction location |
Passenger-side seat warmer unit (L.H.D.)/Driver-side seat warmer unit (R.H.D.) circuit malfunction (Heater side) |
|---|---|
|
Detection condition
|
• The dash-electrical supply unit detects a short to ground in the passenger-side seat warmer unit (L.H.D.)/driver-side seat warmer unit (R.H.D.) circuit.
|
|
Fail-safe
|
• Stops the driver and passenger-side seat warmer output.
|
|
Possible cause
|
1. Malfunction in wiring harness (including connector/terminal) between passenger-side seat warmer unit (L.H.D.)/driver-side seat warmer unit (R.H.D.) and position memory control module/seat warmer control unit (See CIRCUIT INSPECTION.) (See CONNECTOR INSPECTION.)
2. Malfunction in wiring harness (including connector/terminal) between passenger-side seat warmer unit (L.H.D.)/driver-side seat warmer unit (R.H.D.) and body ground (See CIRCUIT INSPECTION.) (See CONNECTOR INSPECTION.)
3. Passenger-side front seat (L.H.D.)/Driver-side front seat (R.H.D.) malfunction (passenger-side seat warmer unit (L.H.D.)/driver-side seat warmer unit (R.H.D.) circuit malfunction or passenger-side seat warmer unit (L.H.D.)/driver-side seat warmer unit (R.H.D.) malfunction) (Refer to [FRONT SEAT REMOVAL/INSTALLATION] in workshop manual.)
4. Position memory control module/seat warmer control unit malfunction (Refer to [POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION] in workshop manual.) (Refer to [SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION] in workshop manual.)
5. Dash-electrical supply unit malfunction (Refer to [DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION] in workshop manual.)
|
|
Repeatability verification procedure
|
1. Clear the DTC recorded in the memory. (See CLEARING DTC.)
|
 |
|
|

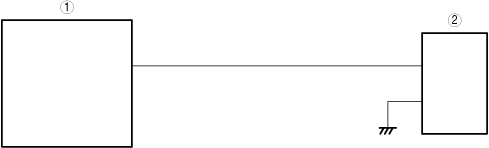

1
|
Position memory control module/seat warmer control unit
|
|
2
|
Passenger-side seat warmer unit (L.H.D.)/Driver-side seat warmer unit (R.H.D.)
|
