B1026:08 [BCM]
id990210102000
| System malfunction location |
Error signal received from steering lock unit |
|---|---|
|
Detection condition
|
• The body control module (BCM) receives the error signals from the steering lock unit.
|
|
Fail-safe
|
• Not applicable
|
|
Possible cause
|
1. Malfunction in wiring harness (including connector/terminal) between steering lock unit and body control module (BCM) (See CIRCUIT INSPECTION.) (See CONNECTOR INSPECTION.)
2. Steering lock unit malfunction (Refer to [STEERING LOCK UNIT INSPECTION] in workshop manual.)
3. Body control module (BCM) malfunction (Refer to [BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION] in workshop manual.)
|
|
Repeatability verification procedure
|
1. Clear the DTC recorded in the memory. (See CLEARING DTC.)
|
 |
|
|

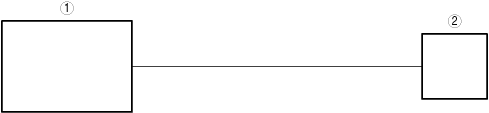

1
|
Body control module (BCM)
|
|
2
|
Steering lock unit
|
